Registry and Group Policy Settings (GPO)

The registry and GPO settings described below assist in configuring and troubleshooting the product.

Printer for Remote Desktop Server includes *.admx and *.adml administrative template files. These template files allow to configure the product via Local GPO and/or Domain-Based GPO. Please refer to Microsoft MSDN article on managing ADMX files.

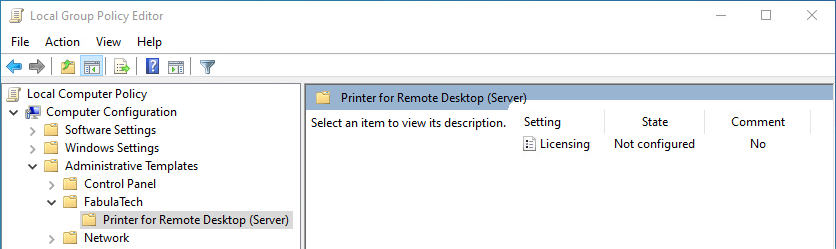

GPO template

The archive file containing administrative template can be found in the installation directory:

%ProgramFiles%\FabulaTech\Printer for Remote Desktop (Server)\policies.zip

Additionally, the administrative template files are deployed to a local GPO during product installation and can be found here:

%WINDIR%\PolicyDefinitions\Fabulatech.admx
%WINDIR%\PolicyDefinitions\ftprintrdpsrv.admx
%WINDIR%\PolicyDefinitions\en-US\Fabulatech.adml
%WINDIR%\PolicyDefinitions\en-US\ftprintrdp.adml

The GPO template can be used to configure the following settings:

Setting Description
Append user name instead of session IDUser name will be shown instead of session id alongside redirected printer name. Possible formats: DOMAIN/user or COMPNAME/user.
Custom resolutionsAdd custom print resolutions (DPI) to the printer's resolution list.
LicensingLicensing management.
Limit quality for large printsReduce print quality when the printed page is larger than the specified size.

It's recommended to use the GPO template files provided with the latest product version of Printer for Remote Desktop Server.

Registry Settings

HKLM\Software(\Wow6432Node)\FabulaTech\Printer for Remote Desktop (Server)
Value name Type Range Default If none * Description
LogLevel REG_DWORD 0-3 2 2 Printer for Remote Desktop (Server) logging level:
0 - Error
1 - Warning
2 - Info
3 - Debug.
Should be set both:
HKLM\Software\FabulaTech\Netlink 3
HKLM\Software\Wow6432Node\FabulaTech\Netlink 3
Value name Type Range Default If none * Description
LogLevel REG_DWORD 0-3 1 1 NetLink logging level:
0 - Error.
1 - Warning.
2 - Info.
3 – Debug.
