Creating Remote Virtual Serial Port

Network Serial Port Kit allows creating virtual null-modem connections over local network or the Internet. Virtual serial ports are used for this purpose. At that, one virtual serial port is created on a remote computer and another one is created on a local computer. These ports connect to each other over network by means of virtual null-modem cable.

Shared virtual serial port must be created on a remote computer.

1. In order to create shared virtual serial port click Share button.

Network Serial Port Kit Toolbar

2. Then select virtual serial port you want to create from drop-down list.

Note: Click Advanced button to configure bitrate emulation and type of virtual null-modem cable. Refer to Remote Virtual Serial Port Advanced Settings for details.

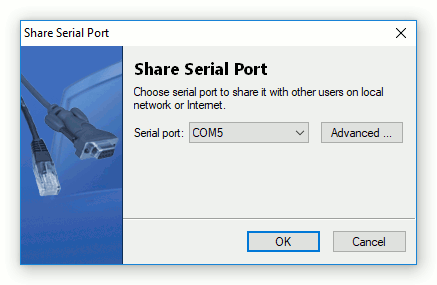

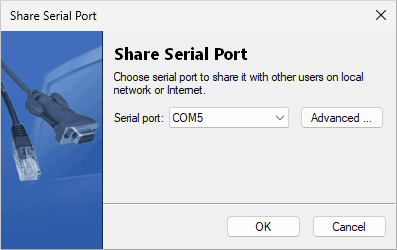

Share Virtual Serial Port

3. Then click OK button. The program will create shared virtual serial port.

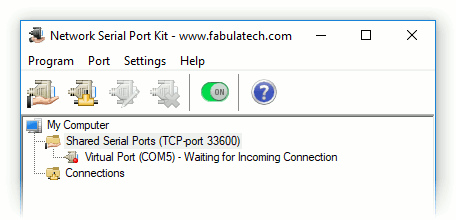

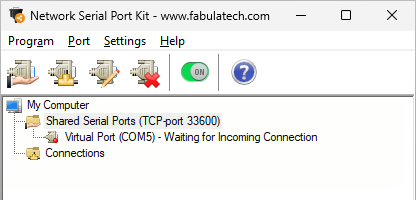

Shared Virtual Serial Port
